Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1A 12-WFQFN Exposed Pad, CSP
Industry: Renewable Energy
-
EVAL-ADP2441
The ADP2441 evaluation board is a complete, dc-to-dc switching regulator design based on the ADP2441, a configurable, 1 A,
synchronous step-down, dc-to-dc regulator.
The ADP2441 is a synchronous, step-down dc-to-dc switching
regulator that uses a current mode pulse-width modulation
(PWM) control scheme at medium-to-heavy load currents for
high efficiency and smoothly transitions to a pulse skip mode
at light loads to conserve power. The power switch and
synchronous rectifier are integrated for minimal external part
count and high efficiency. The ADP2441 is optimized for
operation with small ferrite core inductors and ceramic
capacitors to deliver the maximum output power per square
millimeter of the PCB board area.
The ADP2441-EVALZ is available with 5 V at 1 A output,
switching frequency set to 500 kHz. If needed, the ADP2441
evaluation board configuration can be modified by changing
the values of the appropriate passive components.
Complete specifications for the ADP2441 device can be found
in the ADP2441 data sheet, which is available from Analog
Devices, Inc., and should be consulted in conjunction with this
user guide when using the evaluation board. -
1-480424-0 (Universal MATE-N-LOK)
4 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-2, 5.08 mm [.2 in] Centerline, 1 Row, 250 VAC, Wire & Cable, Commercial MATE-N-LOK
-
CAA573X7R1H686M670LJ
CA series is a product with metal frames attached to MLCCs terminal electrodes. Unlike conventional MEGACAP CKG series which MLCCs are stacked vertically, CA series adopts the inline structure which MLCCs are arranged side by side and optimizes the metal frame materials. As a result, CA series achieves the capacitance increment while suppressing the increase of product height and electrical resistance.
-
dsPIC33CH128MP508
System developers designing high-end embedded control applications can benefit from a new Digital Signal Controller (DSC) with two dsPIC DSC cores in a single chip. The dsPIC33CH has one core that is designed to function as a main core while the other is designed as a secondary core. The secondary core is useful for executing dedicated, time-critical control code while the main core is busy running the user interface, system monitoring and communications functions, customized for the end application.
The dsPIC33CH is designed to facilitate independent code development for each core by separate design teams and allows seamless integration when they are brought together in one chip. The dsPIC33CH family is optimized for high-performance digital power, motor control, advanced sensing and control, and general-purpose high-end embedded applications requiring sophisticated algorithms.
These dual-core DSCs are a good fit for complex yet cost-effective advanced sensing, core-independent touch, motor, and digital power applications.
The dsPIC33CH product family has many hardware features that help simplify functional safety certifications for ASIL-B/-C and SIL-2/-3 focused automotive and industrial safety-critical applications. The family offers ISO 26262 and IEC 61508 Functional Safety packages containing FMEDA report, safety manual, diagnostic libraries and more.
-
GH15(25)-C2Sxx-01 DC-DC Power Supply Module – Super Wide DC Input, Isolated Single Output
The GH15(25)-C2Sxx-01 series is a high-voltage isolated DC-DC power supply module designed for industrial applications requiring a super-wide input voltage range of 40VDC to 1000VDC. It features 4000VDC isolation, reverse polarity protection, over-current protection (OCP), short-circuit protection (SCP), and requires no minimum load.
-
GH150-CNxxU(-Lxx) DC-DC Power Supply Module – Ultra Wide Input, Isolated Single Output
The GH150-CNxxU(-Lxx) series is a compact industrial-grade DC-DC converter engineered for renewable energy and high-voltage industrial applications. Supporting a wide input voltage range from 100VDC to 1000VDC, the module delivers stable isolated output voltages from 12V to 48V with efficiency up to 86%.
Designed to meet CE (EN62477-1) requirements, the series incorporates reverse polarity protection, input under-voltage protection (UVP), over-current protection (OCP), and short-circuit protection (SCP) to ensure reliable operation in demanding environments. Featuring 4000VAC input-to-output isolation, a rugged metal enclosure, and no minimum load requirement, it is ideally suited for photovoltaic power stations, battery energy storage systems, and other industrial power conversion applications. The standard model uses terminal connections, while the “-Lxx” versions are supplied with pre-installed input and output wires of customizable length for simplified installation.
Applications
- Energy Storage Systems (ESS)
- Photovoltaic Power Stations
- Renewable Energy Installations
- Industrial Automation Equipment
- High Voltage Industrial Systems
- Power Monitoring and Control Equipment
- DC Power Distribution Systems
Available Models
- GH150-CN12U (12V Output)
- GH150-CN15U (15V Output)
- GH150-CN24U (24V Output)
- GH150-CN28U (28V Output)
- GH150-CN32U (32V Output)
- GH150-CN48U (48V Output)
- GH150-CN12U-Lxx
- GH150-CN15U-Lxx
- GH150-CN24U-Lxx
- GH150-CN28U-Lxx
- GH150-CN32U-Lxx
- GH150-CN48U-Lxx
Specifications
Specification Value Input Voltage 100VDC – 1000VDC Output Power 100W / 150W Output Voltage Options 12V, 15V, 24V, 28V, 32V, 48V Isolation Voltage 4000VAC Input-to-Case Isolation 2000VAC Output-to-Case Isolation 2000VAC Efficiency Up to 86% Operating Temperature -40°C to +85°C Storage Temperature -40°C to +85°C Storage Humidity Up to 95% RH Switching Frequency 65kHz MTBF 215,000 Hours Weight 680g Cooling Method Natural Air Cooling (Forced Air Cooling Recommended) Protection Features
- Input Reverse Polarity Protection
- Input Under-Voltage Protection (UVP)
- Output Over-Current Protection (OCP)
- Output Short-Circuit Protection (SCP)
- Self-Recovery Protection Mechanisms
- External Input Fuse Support
- CE (EN62477-1) Compliance Support
-
GH150-V2SxxU-S(-DZ) DC-DC Power Supply Module – Ultra Wide Input, Isolated Single Output
The GH150-V2SxxU-S(-DZ) series is a compact industrial-grade DC-DC converter engineered for renewable energy and high-voltage industrial applications. Supporting an ultra-wide input voltage range of 250VDC to 1500VDC, the module delivers stable isolated output voltages from 12V to 48V with efficiency up to 86%.
Designed with reference to EN62109 and UL1741 standards, the series incorporates reverse polarity protection, input under-voltage protection (UVP), over-current protection (OCP), and short-circuit protection (SCP). With 4000VAC input-to-output isolation, rugged metal enclosure construction, and no minimum load requirement, it is ideally suited for photovoltaic power stations, battery energy storage systems, and other demanding industrial power applications. The standard version includes input and output wires, while the “-DZ” variant provides terminal connections for simplified installation and maintenance.
Applications
- Photovoltaic Power Stations
- Energy Storage Systems (ESS)
- Renewable Energy Installations
- Industrial Automation Equipment
- High Voltage Industrial Systems
- Power Monitoring and Control Equipment
Available Models
- GH150-V2S12U-S (12V Output)
- GH150-V2S15U-S (15V Output)
- GH150-V2S24U-S (24V Output)
- GH150-V2S28U-S (28V Output)
- GH150-V2S32U-S (32V Output)
- GH150-V2S48U-S (48V Output)
- GH150-V2S12U-S-DZ
- GH150-V2S15U-S-DZ
- GH150-V2S24U-S-DZ
- GH150-V2S28U-S-DZ
- GH150-V2S32U-S-DZ
- GH150-V2S48U-S-DZ
Specifications
Specification Value Input Voltage 250VDC – 1500VDC Output Power 100W / 150W Output Voltage Options 12V, 15V, 24V, 28V, 32V, 48V Isolation Voltage 4000VAC Input-to-Case Isolation 3000VAC Output-to-Case Isolation 3000VAC Efficiency Up to 86% Operating Temperature -40°C to +85°C Storage Temperature -40°C to +85°C Switching Frequency 65kHz MTBF 215,000 Hours Weight 680g Cooling Method Natural Air Cooling (Forced Air Cooling Recommended) Protection Features
- Input Reverse Polarity Protection
- Input Under-Voltage Protection (UVP)
- Output Over-Current Protection (OCP)
- Output Short-Circuit Protection (SCP)
- Self-Recovery Protection Mechanisms
- External Input Fuse Support
- EN62109 and UL1741 Reference Design Compliance
-

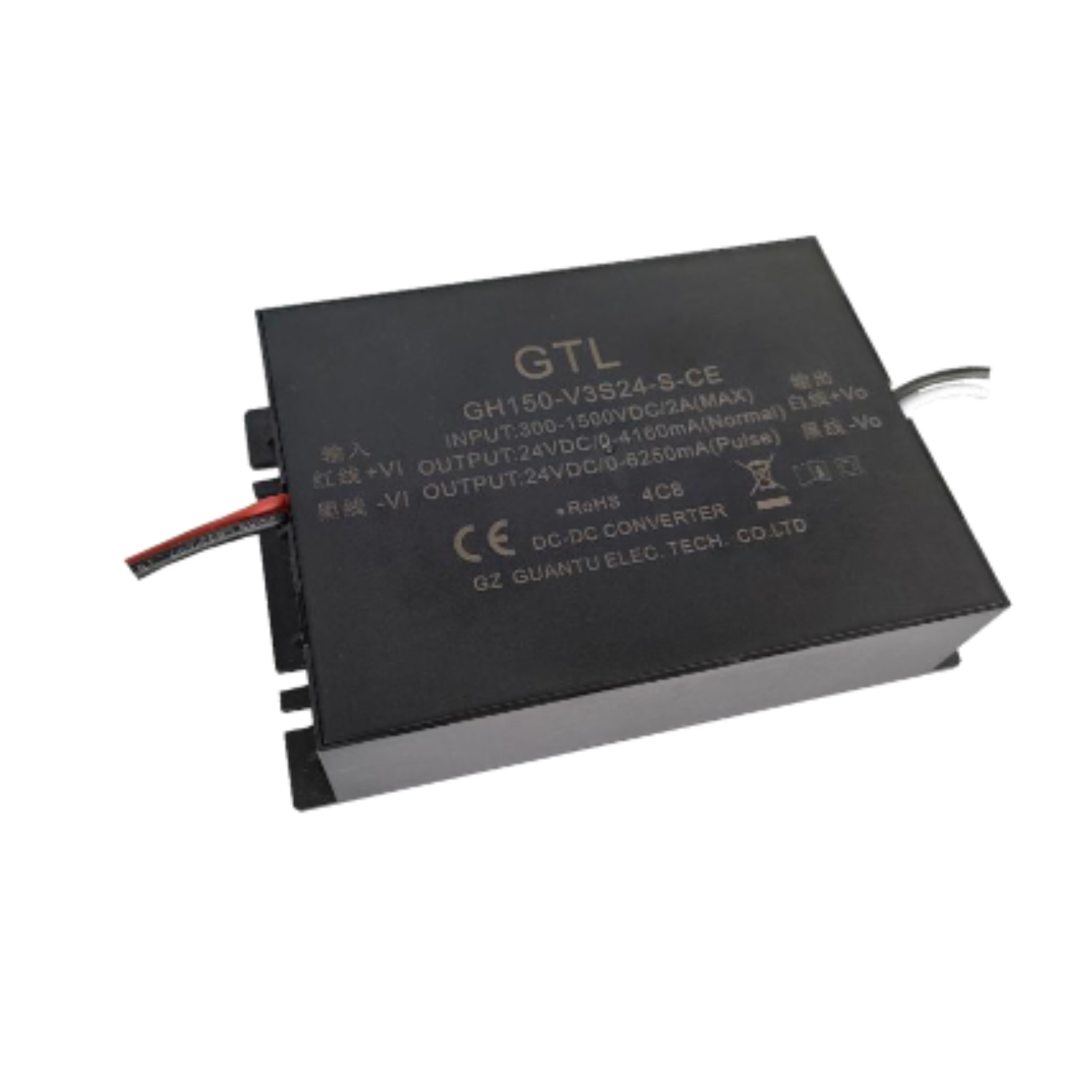

GH150-V3Sxx-S-CE DC-DC Power Supply Module – Ultra Wide Input, Isolated Single Output, CE Certified
The GH150-V3Sxx-S-CE series is a high-performance DC-DC converter engineered for renewable energy and industrial applications requiring stable operation across a wide high-voltage input range. Supporting input voltages from 300VDC to 1500VDC, the module provides isolated output voltages from 12V to 48V with efficiency up to 88%.
Designed to comply with CE-LVD (IEC/EN 62109-1) requirements, the series incorporates reverse polarity protection, under-voltage protection (UVP), over-current protection (OCP), and short-circuit protection (SCP). The compact metal enclosure, 4000VDC isolation, and overload capability make it ideal for photovoltaic systems, solar trackers, energy storage systems, and other high-voltage industrial applications requiring dependable power conversion and long-term reliability.
Applications
- Photovoltaic Power Stations
- Solar Tracking Systems
- Energy Storage Systems (ESS)
- Renewable Energy Installations
- Industrial Automation Equipment
- High Voltage Industrial Systems
- Power Monitoring and Control Equipment
Available Models
- GH150-V3S12-S-CE (12V Output)
- GH150-V3S15-S-CE (15V Output)
- GH150-V3S24-S-CE (24V Output)
- GH150-V3S28-S-CE (28V Output)
- GH150-V3S32-S-CE (32V Output)
- GH150-V3S48-S-CE (48V Output)
Specifications
Specification Value Input Voltage 300VDC – 1500VDC Output Power 80W–100W Normal Pulse Output Power Up to 120W–150W Output Voltage Options 12V, 15V, 24V, 28V, 32V, 48V Isolation Voltage 4000VDC Efficiency Up to 88% Operating Temperature -40°C to +70°C Storage Temperature -40°C to +85°C Switching Frequency 65kHz MTBF 215,000 Hours Weight 1300g Cooling Method Natural Air Cooling (Forced Air Cooling Recommended) Protection Features
- Input Reverse Polarity Protection
- Input Under-Voltage Protection (UVP)
- Output Over-Current Protection (OCP)
- Output Short-Circuit Protection (SCP)
- Self-Recovery Protection Mechanisms
- External Input Fuse Support
- CE-LVD (IEC/EN 62109-1) Compliance Support
-

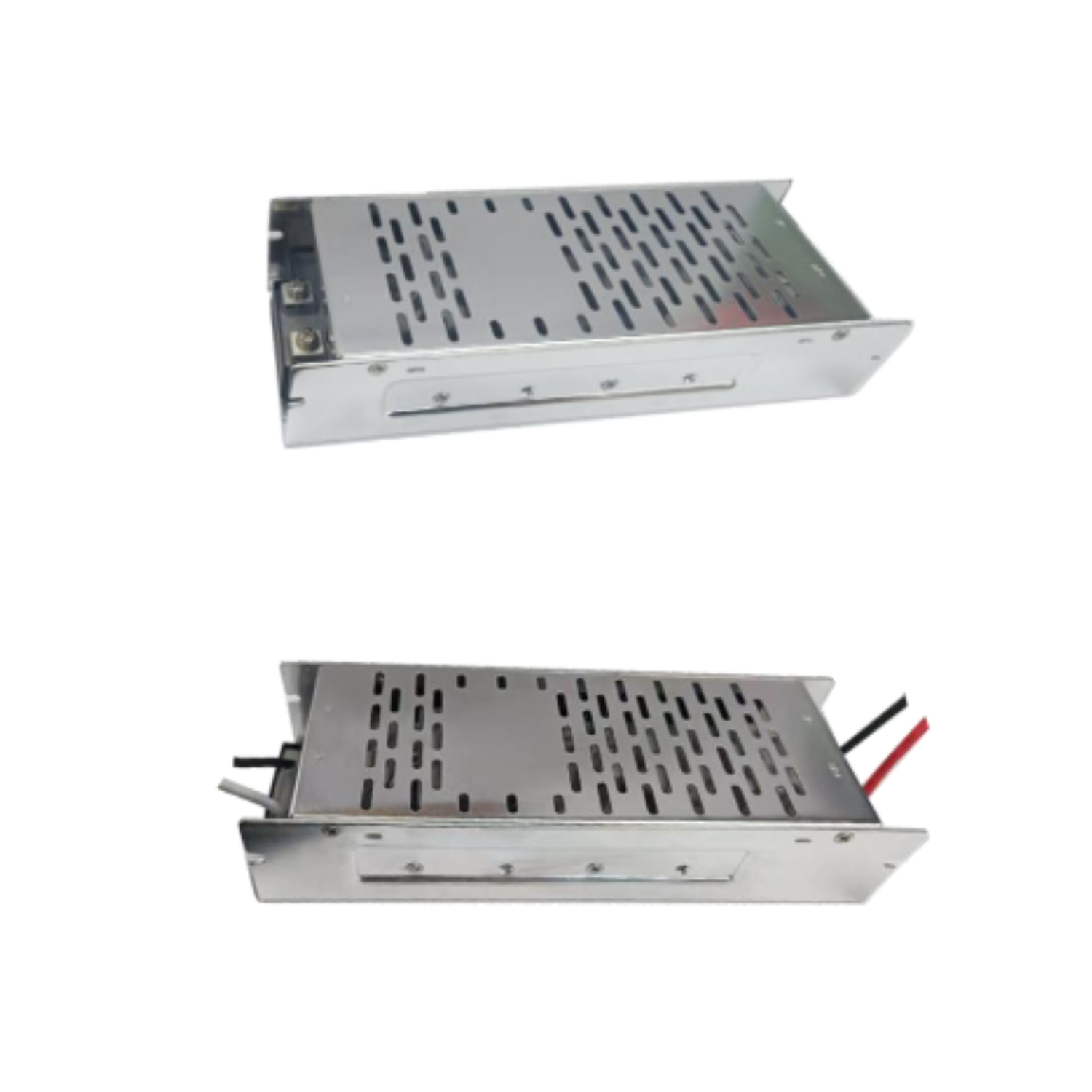

GH200-V2SxxU-S(-Lxx) DC-DC Power Supply Module – Ultra Wide Input, Isolated Single Output
The GH200-V2SxxU-S(-Lxx) series is a high-performance DC-DC converter engineered for renewable energy and industrial power applications that require stable operation across a wide input voltage range. Supporting 250VDC to 1500VDC input, the module delivers isolated output voltages from 12V to 48V with efficiency up to 86%.
Designed in accordance with EN62109 and UL1741 reference standards, the series incorporates reverse polarity protection, under-voltage protection (UVP), over-current protection (OCP), and short-circuit protection (SCP). The robust metal enclosure, 4000VAC isolation, and long operational life make it ideal for photovoltaic power stations, battery energy storage systems, and other high-voltage industrial applications requiring dependable power conversion.
Applications
-
Photovoltaic Power Stations
-
Energy Storage Systems (ESS)
-
Renewable Energy Installations
-
Industrial Automation Equipment
-
High Voltage Industrial Systems
-
Power Monitoring and Control Equipment
Available Models
-
GH200-V2S12U-S (12V Output)
-
GH200-V2S15U-S (15V Output)
-
GH200-V2S24U-S (24V Output)
-
GH200-V2S28U-S (28V Output)
-
GH200-V2S32U-S (32V Output)
-
GH200-V2S48U-S (48V Output)
Specifications
Input Voltage
250VDC – 1500VDC
Rated Output Power
120W–200W
Output Voltage Options
12V, 15V, 24V, 28V, 32V, 48V
Isolation Voltage
4000VAC
Efficiency
Up to 86%
Operating Temperature
-40°C to +85°C
Storage Temperature
-40°C to +85°C
Switching Frequency
65kHz
MTBF
215,000 Hours
Weight
680g
Cooling Method
Natural Air Cooling (Forced Air Cooling Recommended)
-
-

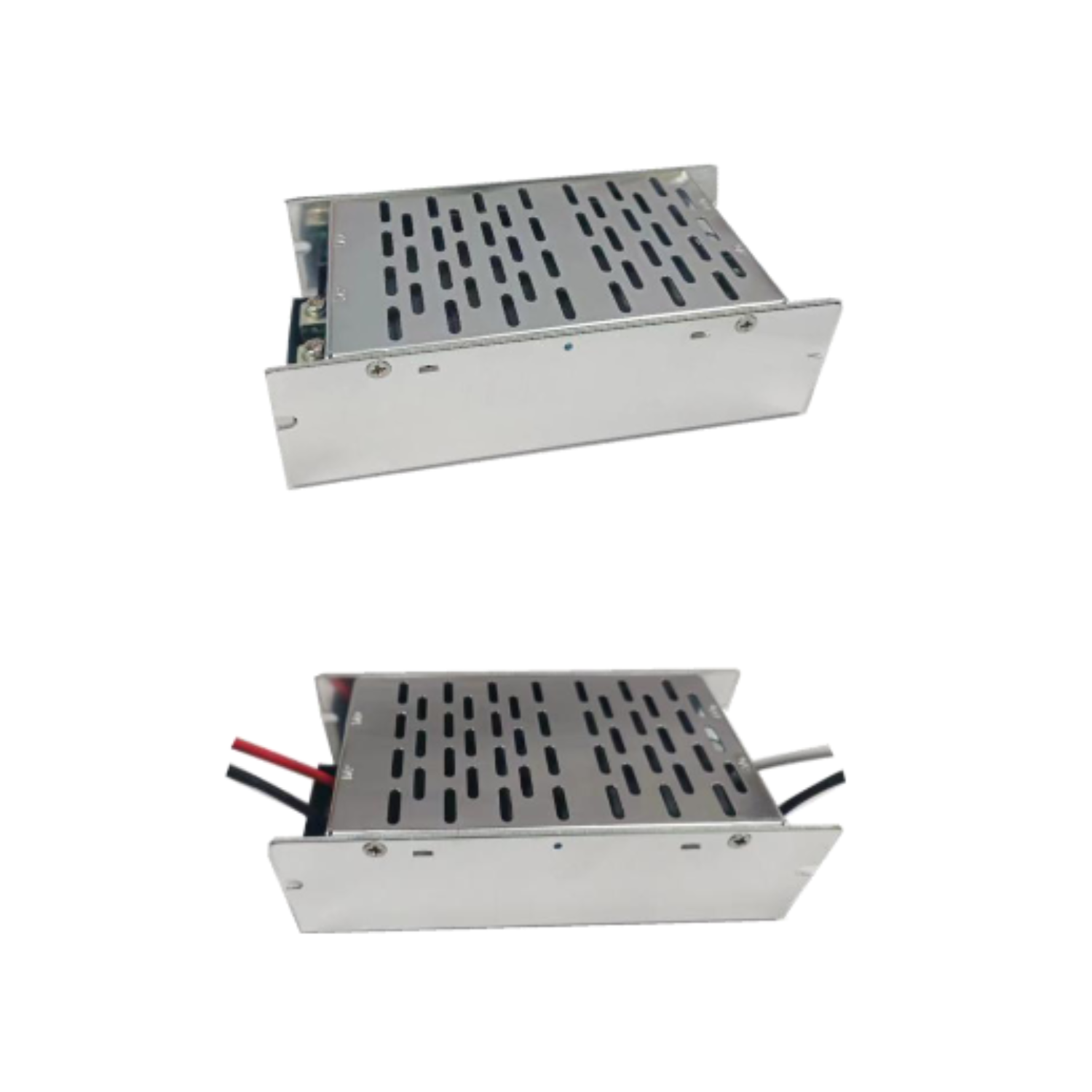

GH240-V2SxxU-LE(-Lxx) DC-DC Power Supply Module – Ultra Wide Input, Isolated Single Output
The GH240-V2SxxU-LE(-Lxx) series is a high-performance DC-DC converter designed for renewable energy and industrial power applications requiring stable operation across a wide input voltage range. Supporting 250VDC to 1000VDC input, the module delivers isolated output voltages from 12V to 48V with efficiency up to 90%.
Built with industrial-grade reliability, the series incorporates reverse polarity protection, under-voltage protection (UVP), over-current protection (OCP), and short-circuit protection (SCP). With 4000VAC input-to-output isolation, compact dimensions, and no minimum load requirement, it is ideal for photovoltaic power stations, battery energy storage systems, and other high-voltage industrial applications.
Applications
- Photovoltaic Power Stations
- Energy Storage Systems (ESS)
- Renewable Energy Installations
- Industrial Automation Equipment
- High Voltage Industrial Systems
- Power Monitoring and Control Equipment
Available Models
- GH240-V2S12U-LE (12V Output)
- GH240-V2S15U-LE (15V Output)
- GH240-V2S24U-LE (24V Output)
- GH240-V2S28U-LE (28V Output)
- GH240-V2S32U-LE (32V Output)
- GH240-V2S48U-LE (48V Output)
Specifications
- Input Voltage: 250VDC – 1000VDC
- Rated Output Power: 100W–150W
- Pulse Output Power: Up to 240W (10 Minutes)
- Output Voltage Options: 12V, 15V, 24V, 28V, 32V, 48V
- Isolation Voltage: 4000VAC
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Switching Frequency: 65kHz
- MTBF: 215,000 Hours
- Weight: 500g
- Cooling Method: Natural Air Cooling (Forced Air Cooling Recommended)
Protection Features
- Input Reverse Polarity Protection
- Input Under-Voltage Protection (UVP)
- Output Over-Current Protection (OCP)
- Output Short-Circuit Protection (SCP)
- Self-Recovery Protection Mechanisms
- External Input Fuse Support
-

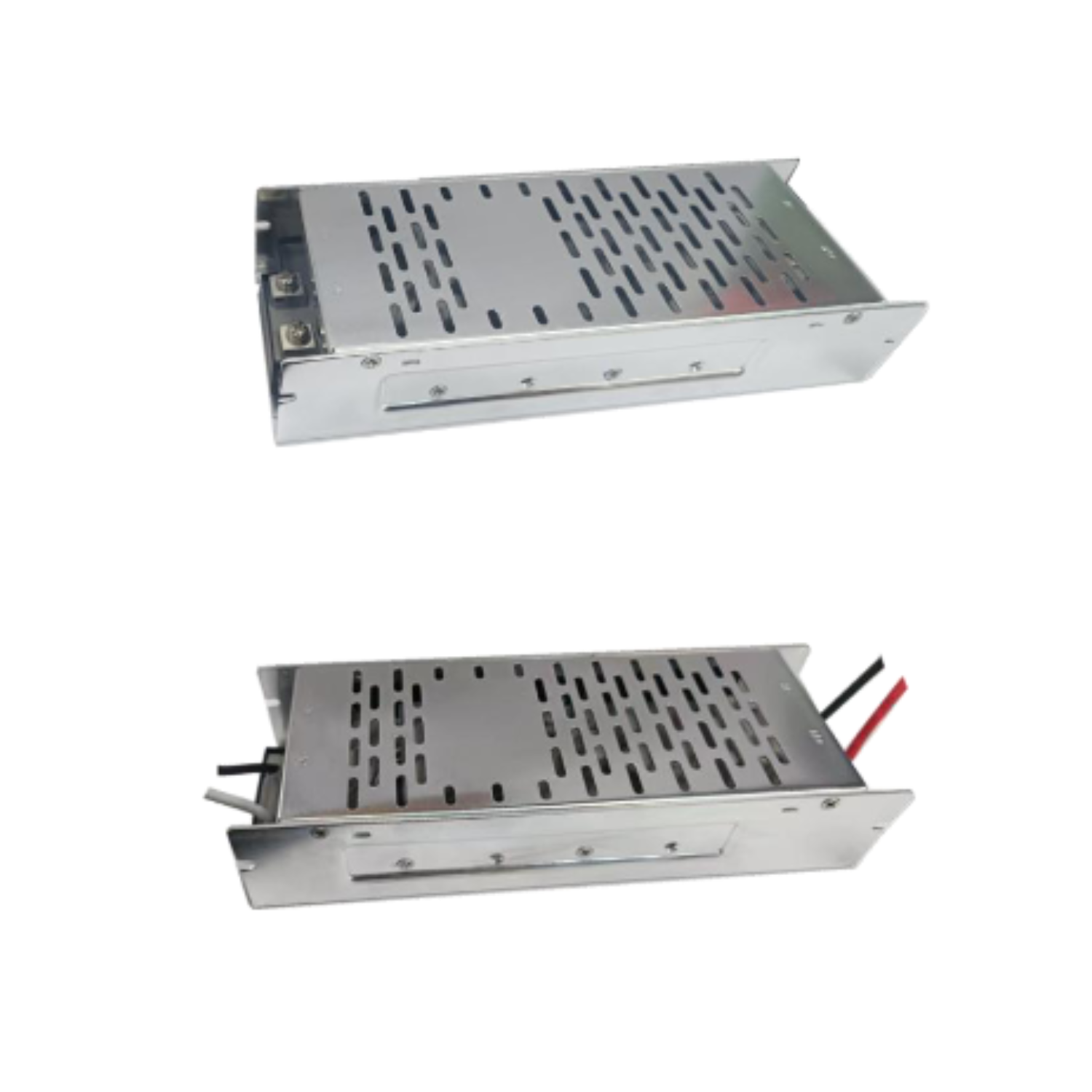

GH350-V2SxxU-SE(-Lxx) DC-DC Power Supply Module – Ultra Wide Input, Isolated Single Output
The GH350-V2SxxU-SE(-Lxx) series is a high-performance DC-DC converter engineered for demanding renewable energy and industrial power applications. With an ultra-wide input voltage range of 250VDC to 1500VDC, the module provides stable isolated output voltages from 12V to 48V while maintaining high efficiency of up to 90%.
Designed in accordance with EN62109 and UL1741 reference standards, the series incorporates input reverse polarity protection, under-voltage protection (UVP), over-current protection (OCP), and short-circuit protection (SCP). The robust metal enclosure, 4000VAC isolation, and long operational life make it ideal for photovoltaic power stations, battery energy storage systems, and other high-voltage industrial applications requiring dependable power conversion.
Applications
- Photovoltaic Power Stations
- Energy Storage Systems (ESS)
- Renewable Energy Installations
- High Voltage Industrial Equipment
- Industrial Automation Systems
- Power Conversion and Control Systems
Available Models
- GH350-V2S12U-SE (12V Output)
- GH350-V2S15U-SE (15V Output)
- GH350-V2S24U-SE (24V Output)
- GH350-V2S28U-SE (28V Output)
- GH350-V2S32U-SE (32V Output)
- GH350-V2S48U-SE (48V Output)
Specifications
- Input Voltage: 250VDC – 1500VDC
- Rated Output Power: 150W–200W
- Pulse Output Power: Up to 350W (3 minutes)
- Output Voltage Options: 12V, 15V, 24V, 28V, 32V, 48V
- Isolation Voltage: 4000VAC
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +85°C
- Storage Humidity: Up to 95% RH
- Switching Frequency: 65kHz
- MTBF: 215,000 Hours
- Cooling Method: Natural Air Cooling / Forced Air Cooling (depending on output power)
- Weight: 680g
Protection Features
- Input Reverse Polarity Protection
- Input Under-Voltage Protection (UVP)
- Output Over-Current Protection (OCP)
- Output Short-Circuit Protection (SCP)
- Self-Recovery Protection Mechanisms
- External Input Fuse Support
-

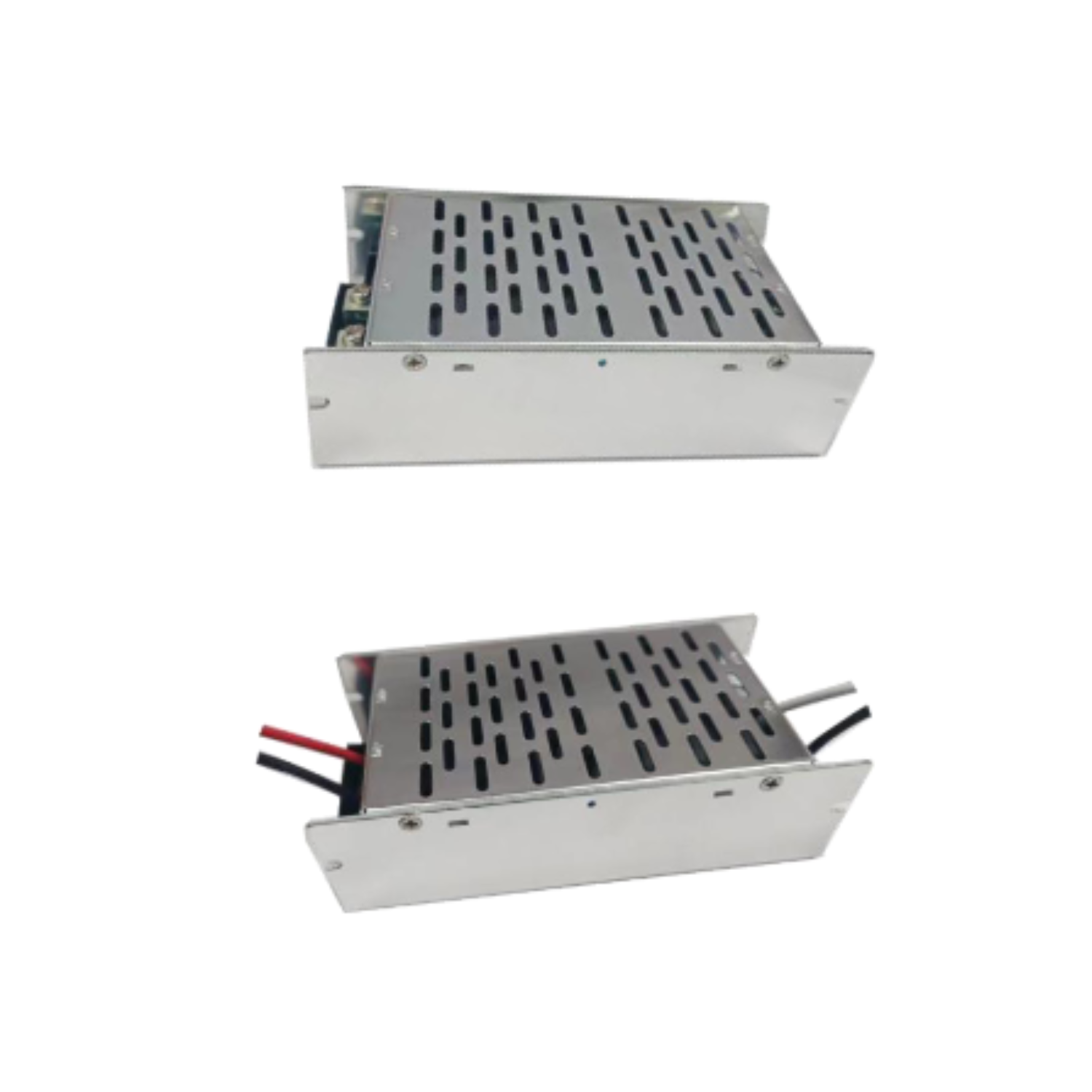

GH75-CNxx(-Lxx) DC-DC Power Supply Module – Ultra Wide Input, Isolated Single Output
The GH75-CNxx(-Lxx) series is a high-performance DC-DC converter designed for renewable energy and industrial applications requiring stable power conversion across a wide input voltage range. Supporting input voltages from 80VDC to 1000VDC, the module delivers isolated output voltages from 12V to 48V while maintaining efficiency up to 86%.
Built to comply with CE (EN62477-1) requirements, the series incorporates reverse polarity protection, under-voltage protection (UVP), over-current protection (OCP), and short-circuit protection (SCP) to ensure dependable operation in demanding environments. With 4000VAC isolation, compact dimensions, lightweight construction, and no minimum load requirement, it is ideally suited for photovoltaic systems, battery energy storage applications, and industrial automation equipment. Models with the “-Lxx” suffix include pre-installed input and output wires for easier installation.
Applications
- Energy Storage Systems (ESS)
- Photovoltaic Power Stations
- Renewable Energy Installations
- Industrial Automation Equipment
- High Voltage Industrial Systems
- Power Monitoring and Control Equipment
- DC Power Distribution Systems
Available Models
- GH75-CN12 (12V Output)
- GH75-CN15 (15V Output)
- GH75-CN24 (24V Output)
- GH75-CN28 (28V Output)
- GH75-CN32 (32V Output)
- GH75-CN48 (48V Output)
- GH75-CN12-Lxx
- GH75-CN15-Lxx
- GH75-CN24-Lxx
- GH75-CN28-Lxx
- GH75-CN32-Lxx
- GH75-CN48-Lxx
Specifications
Specification Value Input Voltage 80VDC – 1000VDC Continuous Output Power 75W Peak Output Power 120W (3 Seconds Max.) Output Voltage Options 12V, 15V, 24V, 28V, 32V, 48V Isolation Voltage 4000VAC Input-to-Case Isolation 2000VAC Output-to-Case Isolation 2000VAC Efficiency Up to 86% Operating Temperature -40°C to +85°C Storage Temperature -40°C to +85°C Storage Humidity Up to 95% RH Switching Frequency 65kHz MTBF 215,000 Hours Weight 500g Cooling Method Natural Air Cooling Protection Features
- Input Reverse Polarity Protection
- Input Under-Voltage Protection (UVP)
- Output Over-Current Protection (OCP)
- Output Short-Circuit Protection (SCP)
- Self-Recovery Protection Mechanisms
- External Input Fuse Support
- CE (EN62477-1) Compliance Support
-
GHAxxxxxHS(D)-xx DC-DC Power Supply Module – Low Input, Isolated High Voltage Output
The GHAxxxxxHS(D)-xx series is a high-performance isolated DC-DC boost converter engineered for applications requiring low-voltage DC input and stable high-voltage DC output. Available with 12VDC, 24VDC, and 48VDC input options, the series supports output voltages ranging from 100VDC to 1500VDC, including both single-output and dual-output configurations.
Designed with a durable metal enclosure for improved heat dissipation, these converters provide reliable power conversion with input-to-output isolation, high efficiency up to 86%, and industrial-grade performance. The compact design and wide output options make the series suitable for automation control systems, instrumentation, communication devices, smart home equipment, renewable energy systems, and other industrial applications.
Applications
- Industrial Automation Equipment
- Process Instrumentation
- Communication Equipment
- Smart Home Systems
- Renewable Energy Systems
- High Voltage Power Applications
- Control and Monitoring Systems
Available Input Voltage Options
- 12VDC Input Series
- 24VDC Input Series
- 48VDC Input Series
Available Output Voltage Options
- 100VDC
- 200VDC
- 300VDC
- 400VDC
- 500VDC
- 600VDC
- 800VDC
- 1000VDC
- 1200VDC
- 1500VDC
- ±100VDC
- ±150VDC
- ±200VDC
Specifications
- Input Voltage: 12VDC / 24VDC / 48VDC
- Output Voltage: 100VDC to 1500VDC
- Maximum Output Power: 30W
- Isolation Voltage: 1500VDC
- Efficiency: Up to 86%
- Switching Frequency: 125kHz
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +105°C
- Insulation Resistance: 1000MΩ
- Cooling Method: Natural Air Cooling
- Protection: Short Circuit Protection (SCP)
-
GVAxxxxxxAS-xx Adjustable High Voltage DC/DC Power Module | 24V Input | 0-1000V Output | 30mA
GVAxxxxxxAS-xx Adjustable High Voltage DC/DC Power Supply Module
The GVA241000AS-30 is a high-voltage DC/DC power supply module designed for applications requiring adjustable output voltage, compact size, and reliable performance. The module features a non-isolated architecture with integrated voltage and current monitoring outputs, making it suitable for industrial control systems, instrumentation, automation equipment, testing systems, and high-voltage applications.
The output voltage can be adjusted linearly through the ADJ control pin, allowing precise voltage regulation over the entire output range. The module incorporates short-circuit protection and offers stable performance across a wide operating temperature range.
Applications
- Industrial automation systems
- Instrumentation equipment
- Industrial control equipment
- Electric power equipment
- Test and measurement systems
- New energy charging equipment
- High-voltage control applications
- Embedded industrial systems
-
IKW40N120H3
The latest 650 V CoolMOS™ CFD7 extends the voltage class offering of the CFD7 family and is a successor to the 650 V CoolMOS™ CFD2.
Resulting from improved switching performance and excellent thermal behavior, 650 V CoolMOS™ CFD7 offers highest efficiency in resonant switching topologies, such as LLC and phase-shift full-bridge (ZVS).
As part of Infineon’s fast body diode portfolio, this new product series blends all advantages of a fast switching technology together with superior hard commutation robustness.
The CoolMOS™ CFD7 technology meets highest efficiency and reliability standards and furthermore supports high power density solutions.
