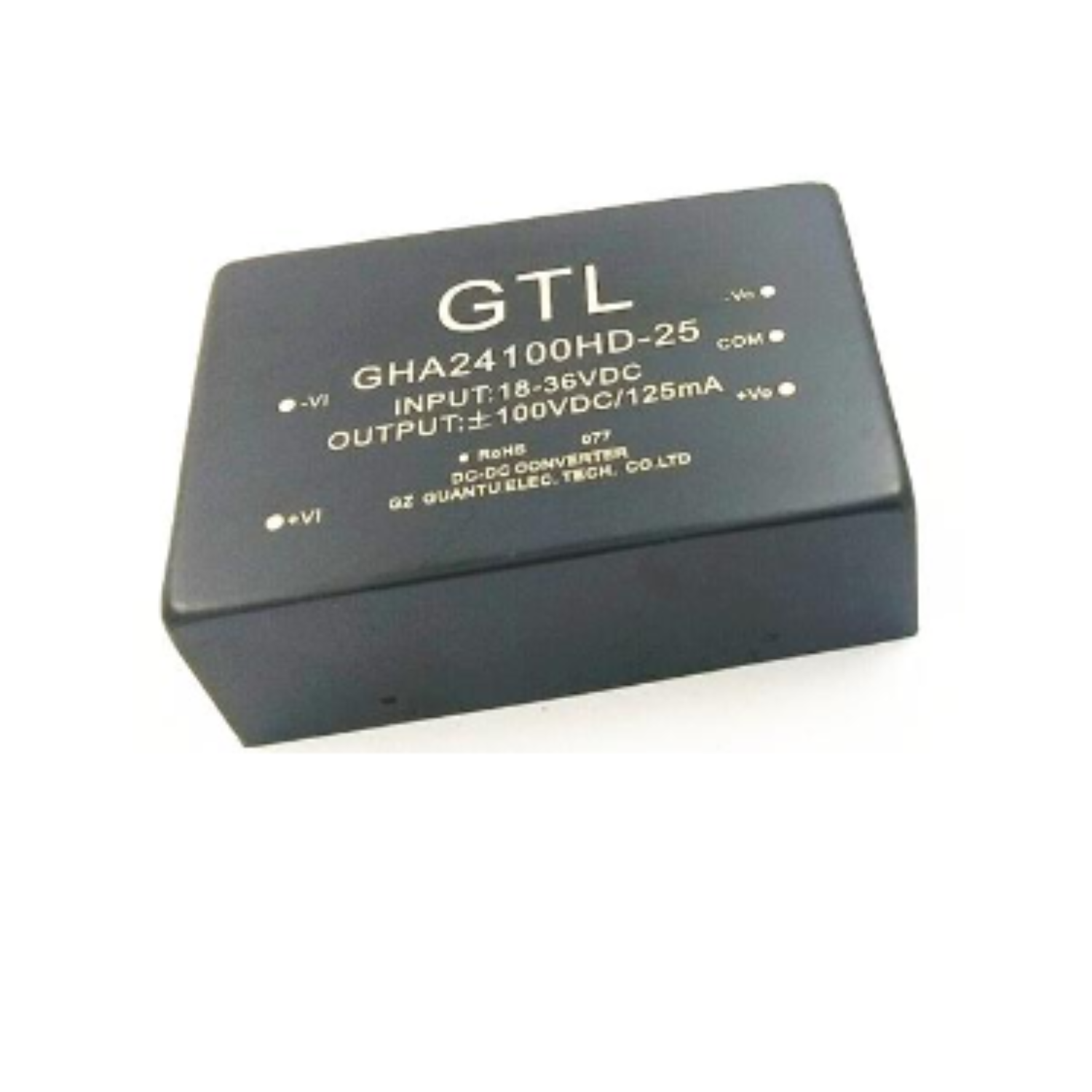

GHAxxxxxHS(D)-xx DC-DC Power Supply Module – Low Input, Isolated High Voltage Output
The GHAxxxxxHS(D)-xx series is a compact DC-DC boost converter module designed to convert low DC input voltages of 12V, 24V, or 48V into isolated high-voltage outputs up to 1500VDC. Featuring industrial-standard pin configuration, high efficiency, and reliable isolation, it is ideal for automation, instrumentation, communication equipment, and renewable energy applications.
Product Description
The GHAxxxxxHS(D)-xx series is a high-performance isolated DC-DC boost converter engineered for applications requiring low-voltage DC input and stable high-voltage DC output. Available with 12VDC, 24VDC, and 48VDC input options, the series supports output voltages ranging from 100VDC to 1500VDC, including both single-output and dual-output configurations.
Designed with a durable metal enclosure for improved heat dissipation, these converters provide reliable power conversion with input-to-output isolation, high efficiency up to 86%, and industrial-grade performance. The compact design and wide output options make the series suitable for automation control systems, instrumentation, communication devices, smart home equipment, renewable energy systems, and other industrial applications.
Applications
- Industrial Automation Equipment
- Process Instrumentation
- Communication Equipment
- Smart Home Systems
- Renewable Energy Systems
- High Voltage Power Applications
- Control and Monitoring Systems
Available Input Voltage Options
- 12VDC Input Series
- 24VDC Input Series
- 48VDC Input Series
Available Output Voltage Options
- 100VDC
- 200VDC
- 300VDC
- 400VDC
- 500VDC
- 600VDC
- 800VDC
- 1000VDC
- 1200VDC
- 1500VDC
- ±100VDC
- ±150VDC
- ±200VDC

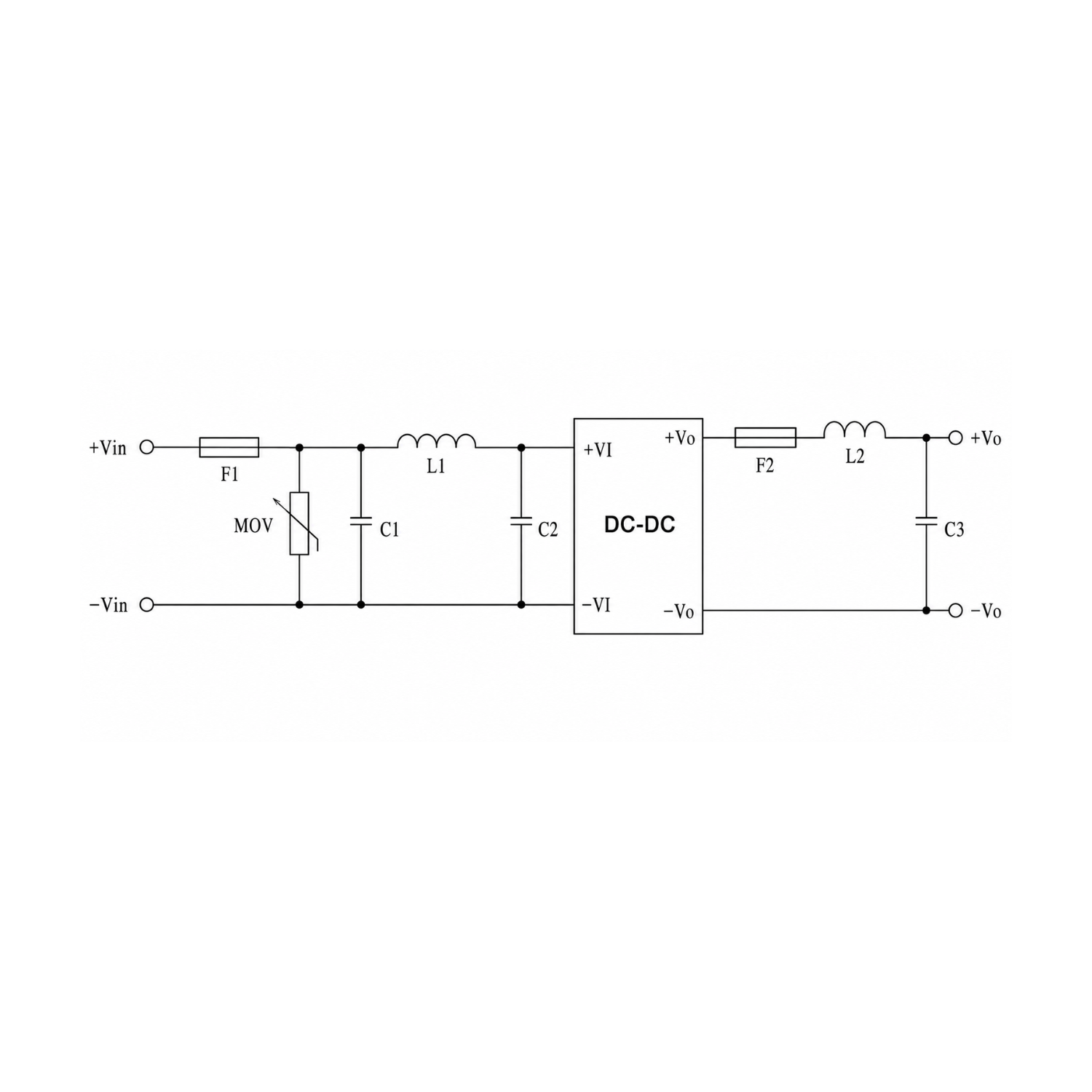

Specifications
- Input Voltage: 12VDC / 24VDC / 48VDC
- Output Voltage: 100VDC to 1500VDC
- Maximum Output Power: 30W
- Isolation Voltage: 1500VDC
- Efficiency: Up to 86%
- Switching Frequency: 125kHz
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +105°C
- Insulation Resistance: 1000MΩ
- Cooling Method: Natural Air Cooling
- Protection: Short Circuit Protection (SCP)
Key Features
Low-voltage DC input (12V, 24V, or 48V)
High-voltage isolated output up to 1500VDC
Single-output and dual-output models available
Input-to-output isolation (1500VDC)
High efficiency up to 86%
Metal case for enhanced heat dissipation

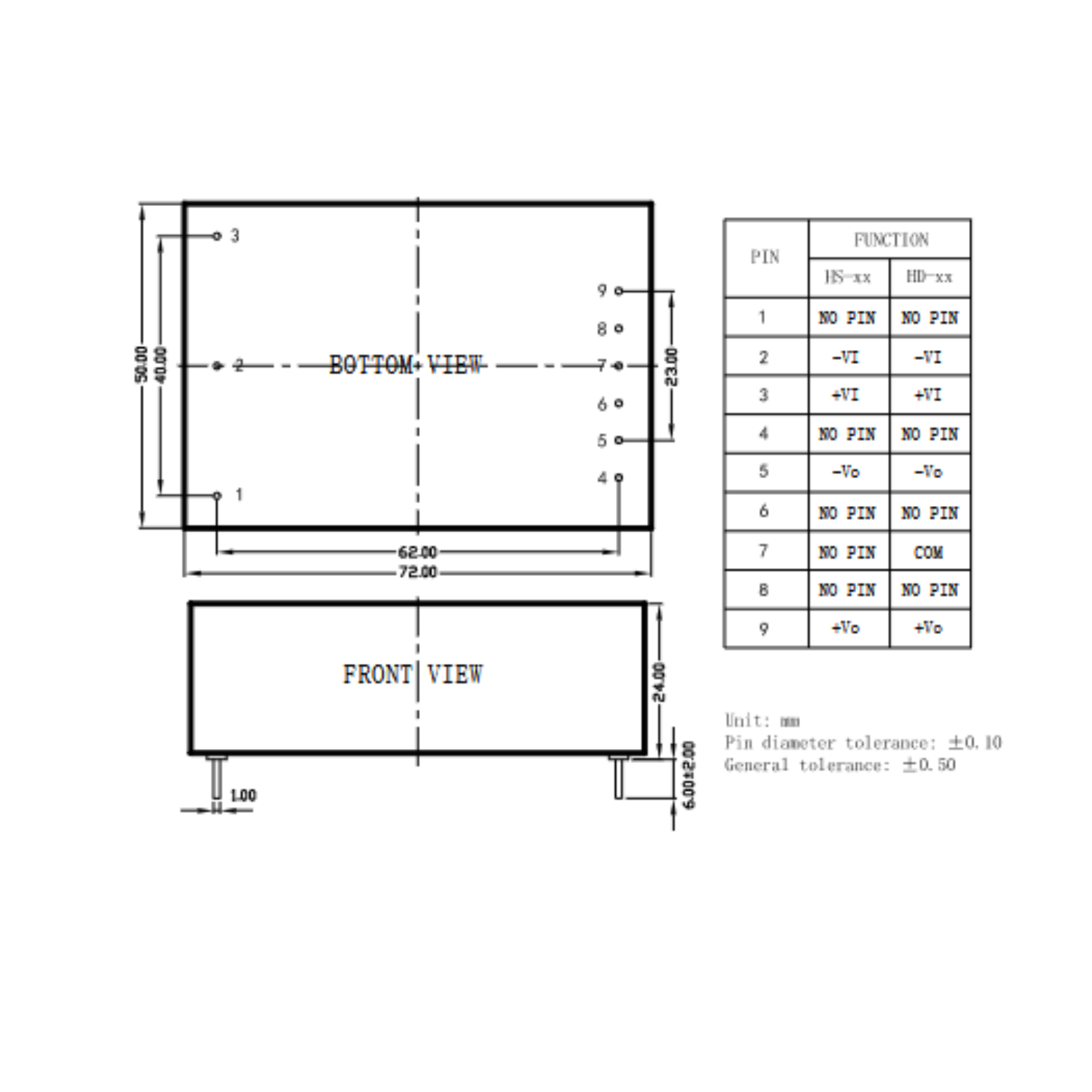

Industrial standard pin configuration
Output short-circuit protection (SCP)
Compact and lightweight design
Natural air cooling operation
