GVAxxxxxxAS-xx Adjustable High Voltage DC/DC Power Module | 24V Input | 0-1000V Output | 30mA
Adjustable high-voltage DC/DC converter with 24VDC input and 0-1000VDC output up to 30mA. Features voltage adjustment, voltage/current monitoring outputs, short-circuit protection, and compact fully sealed construction for industrial and instrumentation applications.
Product Description

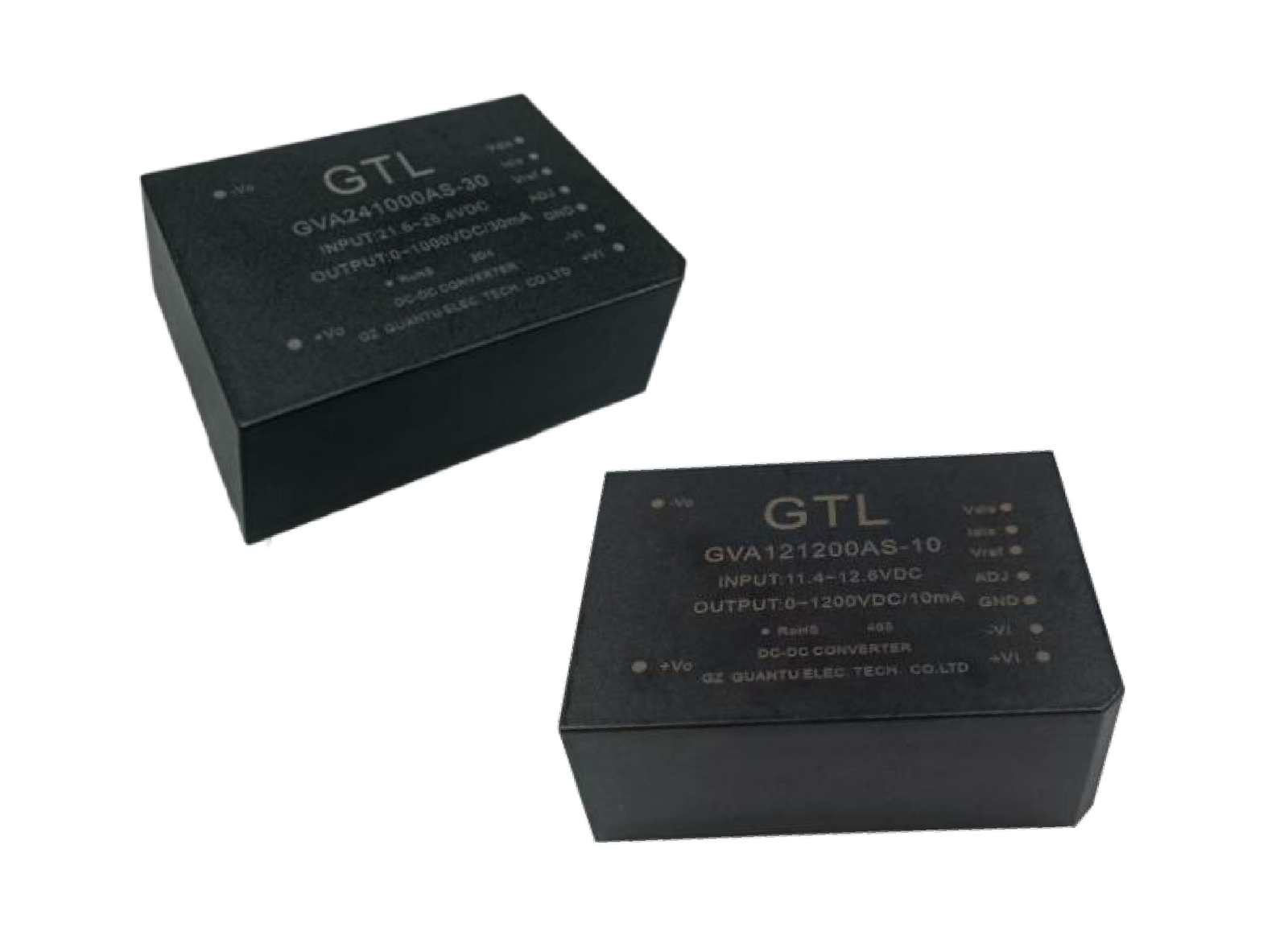

GVAxxxxxxAS-xx Adjustable High Voltage DC/DC Power Supply Module
The GVA241000AS-30 is a high-voltage DC/DC power supply module designed for applications requiring adjustable output voltage, compact size, and reliable performance. The module features a non-isolated architecture with integrated voltage and current monitoring outputs, making it suitable for industrial control systems, instrumentation, automation equipment, testing systems, and high-voltage applications.
The output voltage can be adjusted linearly through the ADJ control pin, allowing precise voltage regulation over the entire output range. The module incorporates short-circuit protection and offers stable performance across a wide operating temperature range.
Applications
- Industrial automation systems
- Instrumentation equipment
- Industrial control equipment
- Electric power equipment
- Test and measurement systems
- New energy charging equipment
- High-voltage control applications
- Embedded industrial systems
Key Features
Low voltage DC input
Adjustable high-voltage output
Non-isolated topology
Output voltage adjustable through ADJ pin
Integrated voltage monitoring output (Vdis)
Integrated current monitoring output (Idis)
Short-circuit protection with self-recovery
High efficiency operation
Compact encapsulated module
Natural air cooling
PCB assembled and fully sealed package
