GH75-CNxx(-Lxx) DC-DC Power Supply Module – Ultra Wide Input, Isolated Single Output
The GH75-CNxx(-Lxx) series is a compact DC-DC power supply module featuring an ultra-wide 80-1000VDC input range, isolated single output, and 75W continuous power with 120W peak output capability. Designed for energy storage systems, photovoltaic installations, and industrial equipment, it provides reliable power conversion with 4000VAC isolation and advanced protection features.
Product Description
The GH75-CNxx(-Lxx) series is a high-performance DC-DC converter designed for renewable energy and industrial applications requiring stable power conversion across a wide input voltage range. Supporting input voltages from 80VDC to 1000VDC, the module delivers isolated output voltages from 12V to 48V while maintaining efficiency up to 86%.
Built to comply with CE (EN62477-1) requirements, the series incorporates reverse polarity protection, under-voltage protection (UVP), over-current protection (OCP), and short-circuit protection (SCP) to ensure dependable operation in demanding environments. With 4000VAC isolation, compact dimensions, lightweight construction, and no minimum load requirement, it is ideally suited for photovoltaic systems, battery energy storage applications, and industrial automation equipment. Models with the “-Lxx” suffix include pre-installed input and output wires for easier installation.
Applications
- Energy Storage Systems (ESS)
- Photovoltaic Power Stations
- Renewable Energy Installations
- Industrial Automation Equipment
- High Voltage Industrial Systems
- Power Monitoring and Control Equipment
- DC Power Distribution Systems
Available Models
- GH75-CN12 (12V Output)
- GH75-CN15 (15V Output)
- GH75-CN24 (24V Output)
- GH75-CN28 (28V Output)
- GH75-CN32 (32V Output)
- GH75-CN48 (48V Output)
- GH75-CN12-Lxx
- GH75-CN15-Lxx
- GH75-CN24-Lxx
- GH75-CN28-Lxx
- GH75-CN32-Lxx
- GH75-CN48-Lxx
Specifications
| Specification | Value |
|---|---|
| Input Voltage | 80VDC – 1000VDC |
| Continuous Output Power | 75W |
| Peak Output Power | 120W (3 Seconds Max.) |
| Output Voltage Options | 12V, 15V, 24V, 28V, 32V, 48V |
| Isolation Voltage | 4000VAC |
| Input-to-Case Isolation | 2000VAC |
| Output-to-Case Isolation | 2000VAC |
| Efficiency | Up to 86% |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Storage Humidity | Up to 95% RH |
| Switching Frequency | 65kHz |
| MTBF | 215,000 Hours |
| Weight | 500g |
| Cooling Method | Natural Air Cooling |
Protection Features
- Input Reverse Polarity Protection
- Input Under-Voltage Protection (UVP)
- Output Over-Current Protection (OCP)
- Output Short-Circuit Protection (SCP)
- Self-Recovery Protection Mechanisms

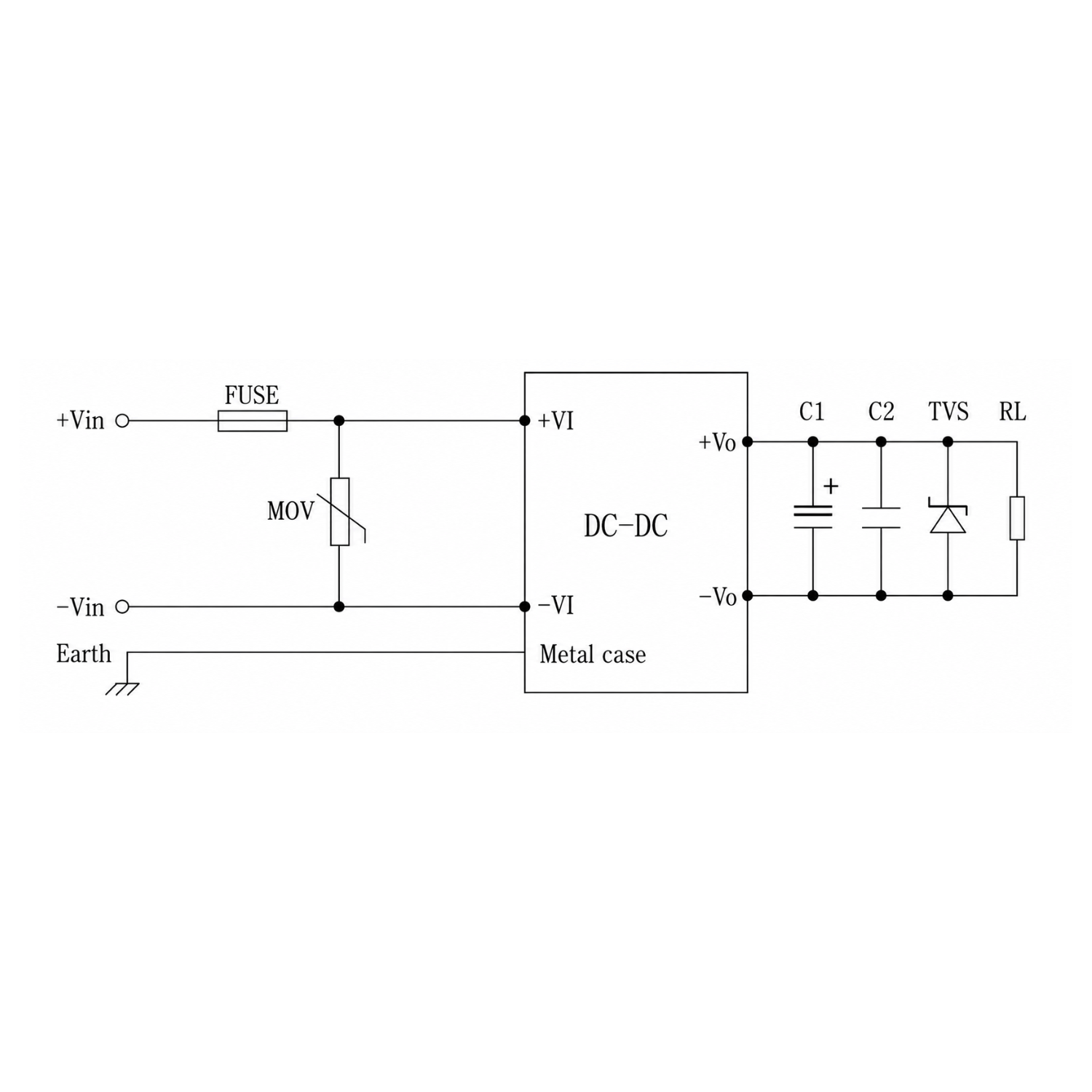

- External Input Fuse Support
- CE (EN62477-1) Compliance Support
Key Features
Ultra-wide input voltage range: 80-1000VDC
Single isolated output
75W continuous output power
120W peak output capability (3 seconds max.)
CE (EN62477-1) compliant design
4000VAC input-to-output isolation
Input reverse polarity protection
Input under-voltage protection (UVP)
Output over-current protection (OCP)
Output short-circuit protection (SCP)
No minimum load requirement
High efficiency up to 86%

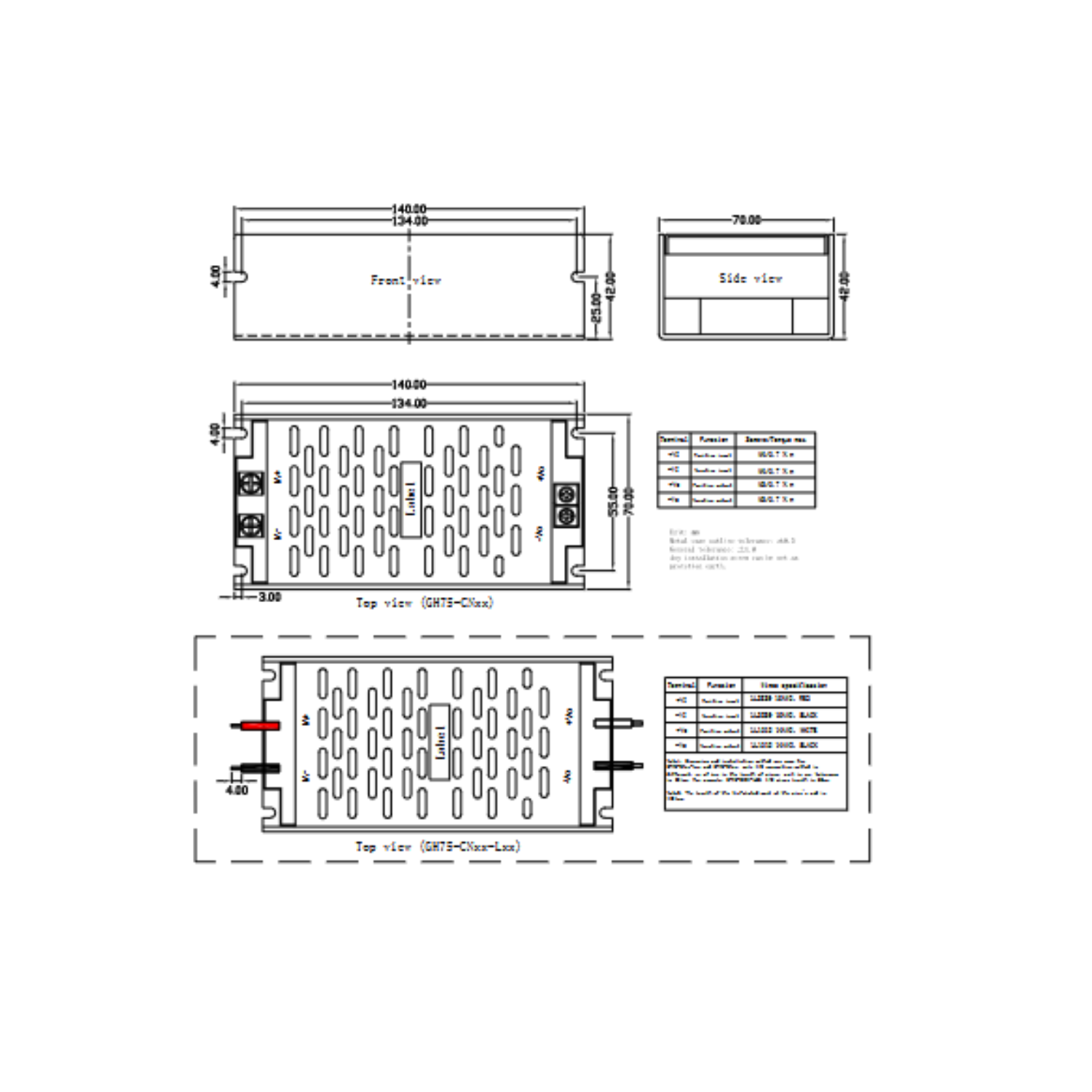

Compact and lightweight design
Available with terminal or wire connection options
Natural air cooling operation
