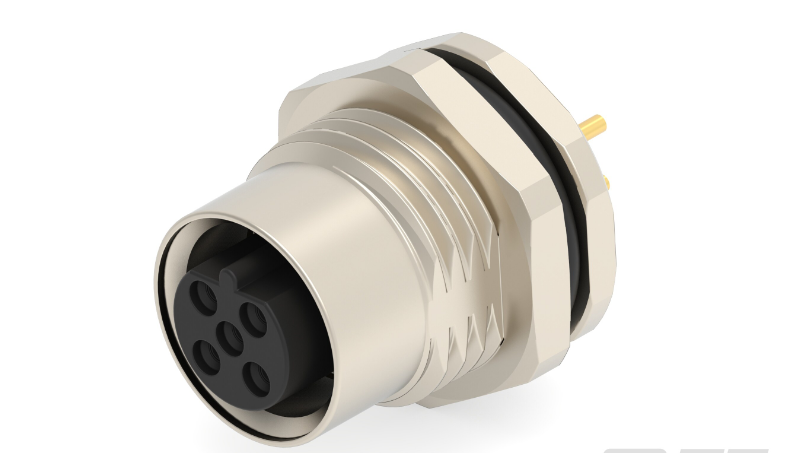

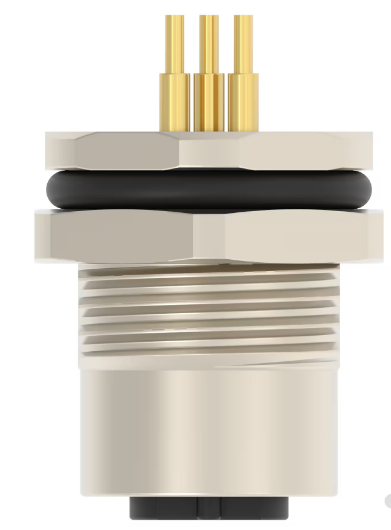

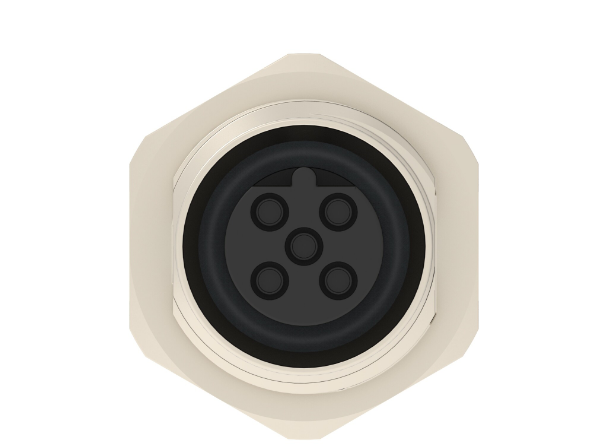

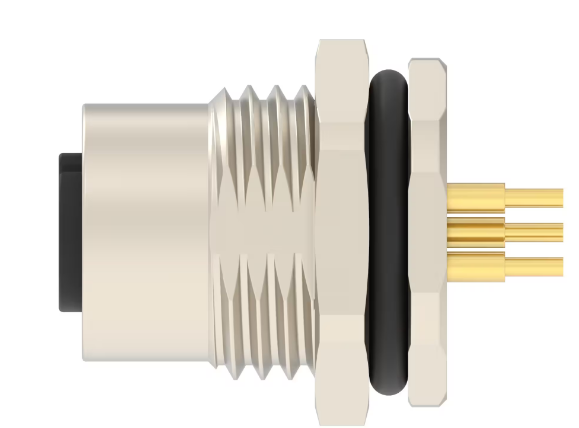

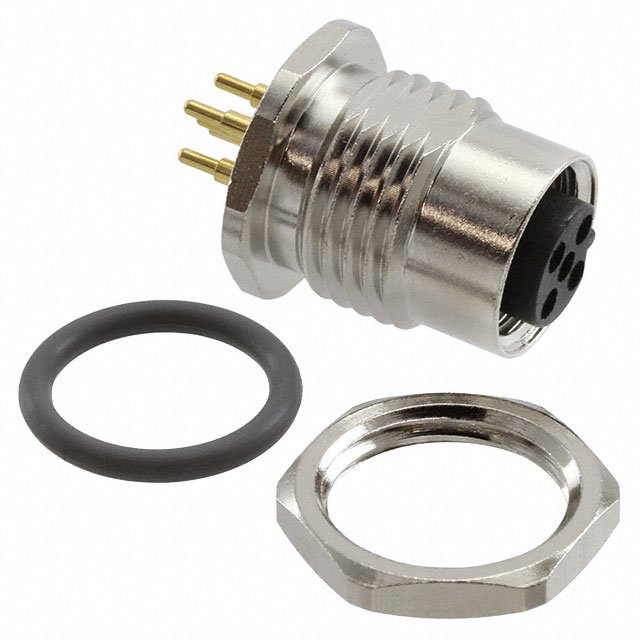

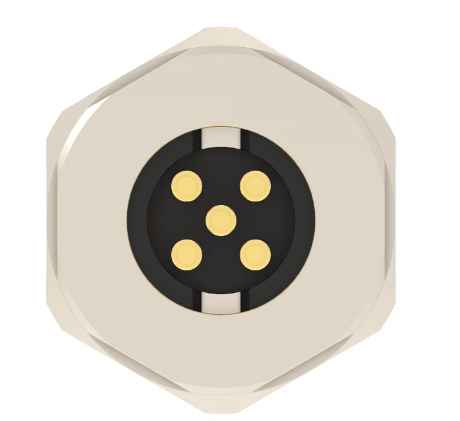

T4141412051-000 (M12 Circular Connector)
CONN PLUG FMALE 5POS GOLD SOLDER
Product Description
TE’s M8/M12 connectors continues to fill the ongoing needs for sensor connection in industrial machinery
and factory automation. A connection standard for many years, these products also find applications
outside of their traditional industries where a compact reliable connection system with environmental
protection is required. TE’s M8/M12 connector portfolio includes A, B, D, S, T, and X-coded (up to 10 Gb/s)
versions to serve various customer needs.
The connectors are also available in shielded and unshielded versions, to support Gigabit Ethernet
applications.
Key Features
Product Type Features
Assembly Type :Electrical Connector
Connector Product Type :Connector Assembly
Circular Connector Shell Type :Metal-Shell
Assembly Requirement :Factory Assembled
Connector System :Wire-to-Panel
Sealable :Yes
Connector & Contact Terminates To :Wire & Cable
Circular Connector Type :Circular Connector Receptacle
Shell Type :Metal
Configuration Features
Factory Installed Backshell :No
Keying & Polarized Position Locations :B
Number of Positions :5
Number of Power Positions :0
Number of Signal Positions :5
Contacts Preloaded :Yes
Electrical Characteristics
Operating Voltage (VDC):60
Operating Voltage (VAC):60
Body Features
Peripheral Seal Material :Silicone
Primary Product Color :Black
Environmental Protection Type :Elastomer Sealed
Environmental Protection :IP67
O-Ring Material :Silicone
Shell Plating Material :Nickel
Shell Base Material :Copper Alloy
Circular Connector Insulation Material Type :Polyamide GF
Hermetically Sealed :Yes
Contact Features
Contact Current Rating (Max) (A):4
Reverse Gender :Yes
Circular Connector Contact Type :Socket
Termination Features
Termination Method to PCB :Through Hole – Solder
Mechanical Attachment
Mating Alignment :With
Panel Mount Feature Type :Screw Nut
Mating Retention Type :Threaded Coupling
Connector Mounting Type :Panel Mount & Board Mount
Polarization Code :B
Mating Alignment Type :Keyed
Housing Features
Circular Connector Shell Size :18
Usage Conditions
IP Water Sealing Level :IP67
Operating Temperature Range :-40 – 85 °C [ -40 – 185 °F ]
Operation/Application
Circuit Application :Signal
Shielded :No
Industry Standards
UL Flammability Rating :UL 94HB
Packaging Features
Packaging Quantity :1
Other
Field Serviceable :No
