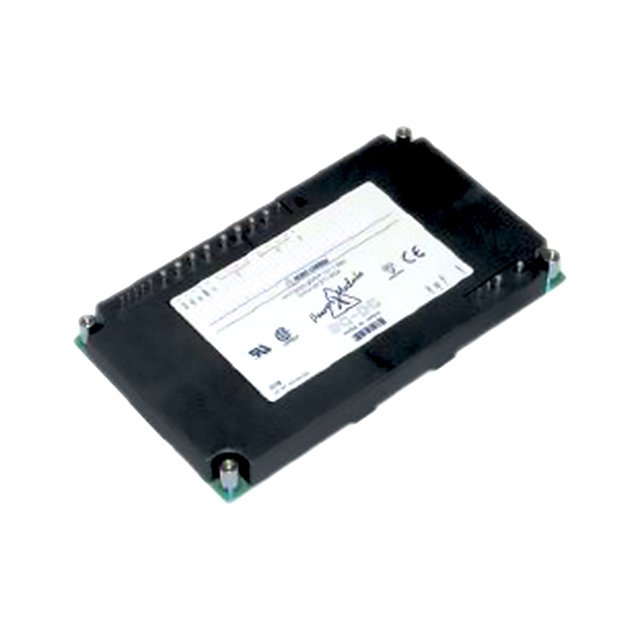

PH100F24-24 Evaluation Board
DC DC CONVERTER 24V 100W
Product Description
Evaluation platform for PH100F24-24 DC-DC converter.
Key Features
● Conduction cooling
● High efficiency
● High power density: 61.6W/inch3
(600W type)
● Full-function model (F type)
N+1 parallel redundancy operation
Current sharing (load current balance)
IOG (inverter operation monitoring signal)
AUX (AUX-BIAS power output)
● Internal capacitor
PH50-150/300F: Aluminum electrolytic (output smoothing), ceramic
PH300S/PH600S: Ceramic capacitor only (high reliability)
