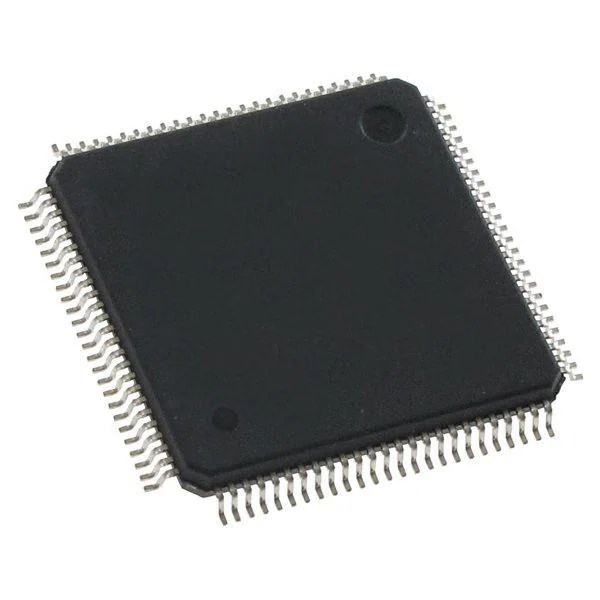

MK64FN1M0VLL12 (Kinetis K64 MCU)
High-performance 32-bit microcontroller designed for reliable real-time industrial control applications.
Product Description
120 MHz ARM® Cortex®-M4-based Microcontroller with FPU The K64 product family members are optimized for cost-sensitive applications requiring low-power, USB/Ethernet connectivity, and up to 256 KB of embedded SRAM. These devices share the comprehensive enablement and scalability of the Kinetis family.
This product offers:
• Run power consumption down to 250 μA/MHz. Static power consumption down to 5.8 μA with full state retention and 5 μs wakeup. Lowest Static mode down to 339 nA
• USB LS/FS OTG 2.0 with embedded 3.3 V, 120 mA LDO Vreg, with USB device crystal-less operation
• 10/100 Mbit/s Ethernet MAC with MII and RMII interfaces
Key Features
“Performance
• Up to 120 MHz ARM® Cortex®-M4 core with DSP instructions and floating point unit
Memories and memory interfaces
• Up to 1 MB program flash memory and 256 KB RAM
• Upto 128 KB FlexNVM and 4 KB FlexRAM on devices with FlexMemory
• FlexBus external bus interface
System peripherals
• Multiple low-power modes, low-leakage wake-up unit
• Memory protection unit with multi-master protection
• 16-channel DMA controller
• External watchdog monitor and software watchdog
Security and integrity modules
• Hardware CRC module
• Hardware random-number generator
• Hardware encryption supporting DES, 3DES, AES,
MD5, SHA-1, and SHA-256 algorithms
• 128-bit unique identification (ID) number per chip
Analog modules
• Two 16-bit SAR ADCs
• Two 12-bit DACs
• Three analog comparators (CMP)
• Voltage reference
Communication interfaces
• Ethernet controller with MII and RMII interface
• USB full-/low-speed On-the-Go controller
• Controller Area Network (CAN) module
• Three SPI modules
• Three I2C modules. Support for up to 1 Mbit/s
• Six UART modules
• Secure Digital Host Controller (SDHC)
• I2S module
Timers
• Two 8-channel Flex-Timers (PWM/Motor control)
• Two 2-channel FlexTimers (PWM/Quad decoder)
• IEEE 1588 timers
• 32-bit PITs and 16-bit low-power timers
• Real-time clock
• Programmable delay block
Clocks
• 3 to 32 MHz and 32 kHz crystal oscillator
• PLL, FLL, and multiple internal oscillators
• 48 MHz Internal Reference Clock (IRC48M)
Operating Characteristics
• Voltage range: 1.71 to 3.6 V
• Flash write voltage range: 1.71 to 3.6 V
• Temperature range (ambient): –40 to 105°C”
