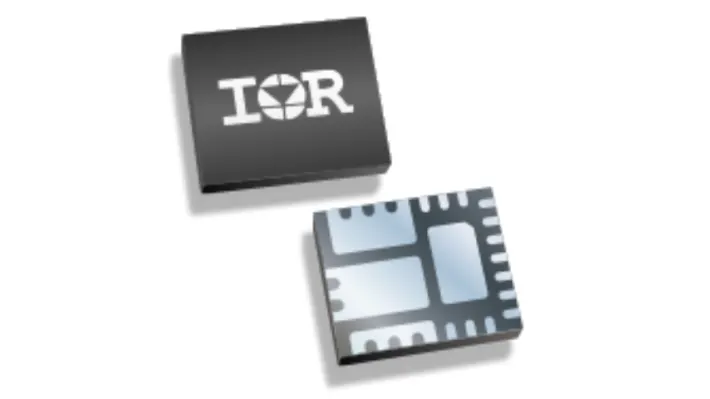

IR38060MTRPBF
Synchronous buck regulator controller.
Product Description
The IR38060 PMBus SupIRBuck™ is an easy-to-use,
fully integrated and highly efficient DC/DC regulator
with I2C/PMBus interface. The onboard PWM controller
and MOSFETs make IR38060 a space-efficient
solution, providing accurate power delivery for low
output voltage and high current applications.
The IR38060 can be comprehensively configured via
PMBus and the configuration stored in internal
memory. In addition, PMBus commands allow run-time
control, fault status and telemetry.
The IR38060 can also operate as a standard analog
regulator without any programming and can provide
current and temperature telemetry in an analog format
Key Features
Internal LDO allows single 16V operation
Output Voltage Range: 0.5V to 0.875 PVin
0.5% accurate Reference Voltage
Programmable Switching Frequency up to 1.5MHz using Rt/Sync pin or PMBus
Internal Soft-Start with Pre-Bias Start-up
Enable input with Voltage Monitoring Capability
Remote Sense Amplifier with True Differential Voltage Sensing
Fast mode I2C and 400kHz PMBus interface
Sequencing and tracking capable
Selectable analog mode or digital mode
Optional light load efficiency mode
66 PMBus commands for configuration, control, fault protection, and telemetry
Thermally compensated current limit with configurable overcurrent responses
External synchronization with Smooth Clocking
Dedicated output voltage sensing protection remains active even when Enable is low
Integrated MOSFETs and Bootstrap diode
Operating junction temperature: -40°C<Tj<125°C
5mm x 6mm PQFN-26 package
Pb-Free (RoHS Compliant)
