GH150-V2SxxU-SE DC-DC Power Supply Module – Ultra Wide Input, Isolated Single Output

Product Description

The GH150-V2SxxU-SE series is a high-reliability DC-DC converter engineered for renewable energy and industrial power applications requiring stable operation from high-voltage DC sources. Supporting an ultra-wide input voltage range from 250VDC to 1500VDC, the module provides regulated isolated outputs of 12V, 24V, 28V, and 32V with power ratings up to 150W.

Designed with reference to EN62109 and UL1741 standards, the series incorporates input reverse polarity protection, under-voltage protection (UVP), output over-current protection (OCP), and short-circuit protection (SCP). With 4000VAC input-to-output isolation, robust metal enclosure construction, and no minimum load requirement, the GH150-V2SxxU-SE series is ideal for photovoltaic systems, battery energy storage installations, and other demanding industrial environments. Available in both terminal connection (A-Type) and wire connection (B-Type) configurations.

Applications

• Photovoltaic Power Stations
• Energy Storage Systems
• Renewable Energy Installations
• High Voltage Industrial Equipment
• Industrial Automation Systems
• Power Monitoring and Control Equipment

Available Models

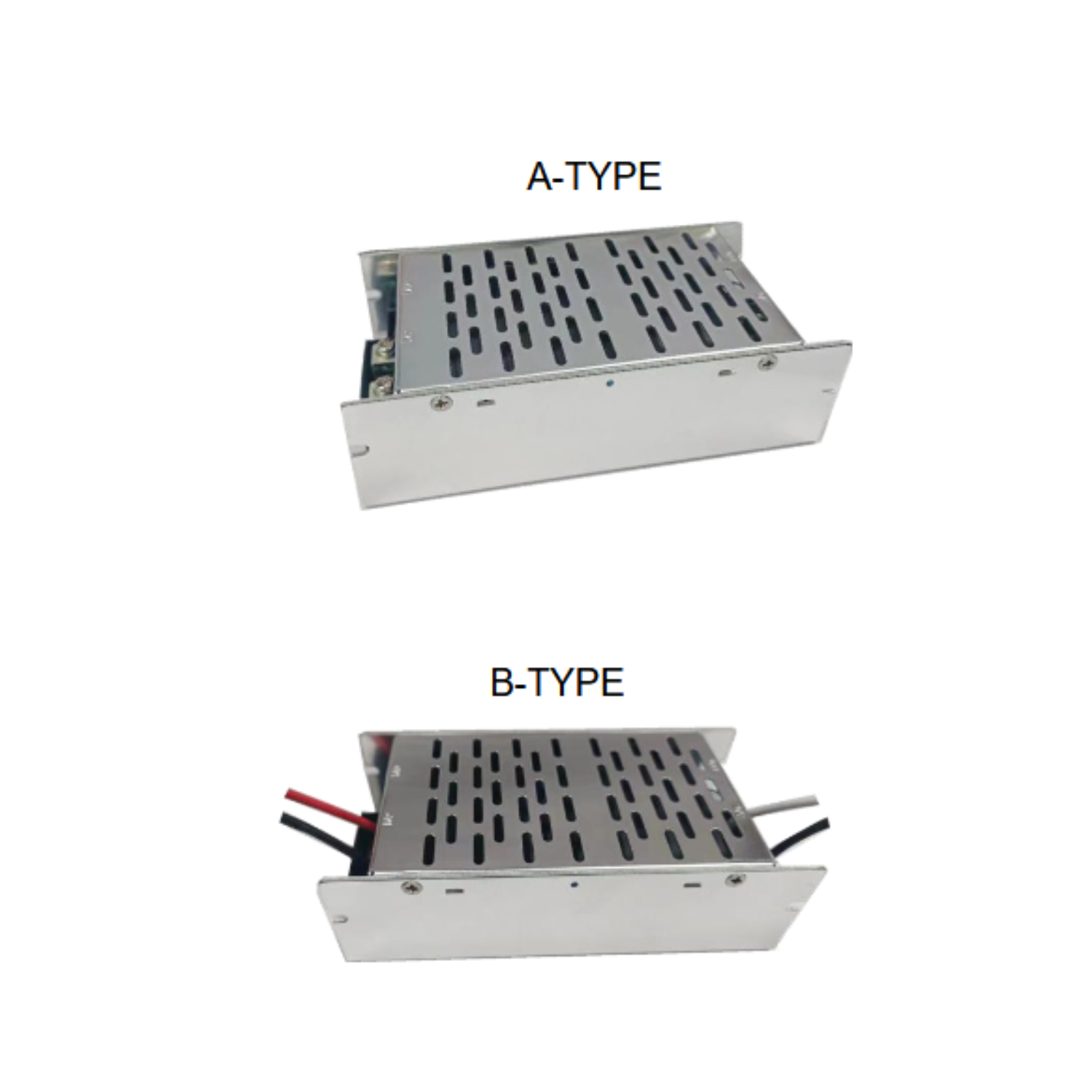

A-Type (Terminal Version)

• GH150-V2S12U-SE (100W, 12V Output)
• GH150-V2S24U-SE (150W, 24V Output)
• GH150-V2S28U-SE (150W, 28V Output)
• GH150-V2S32U-SE (150W, 32V Output)

B-Type (Wire Version)

• GH150-V2S12U-SE-Lxx
• GH150-V2S24U-SE-Lxx
• GH150-V2S28U-SE-Lxx
• GH150-V2S32U-SE-Lxx

Specifications
