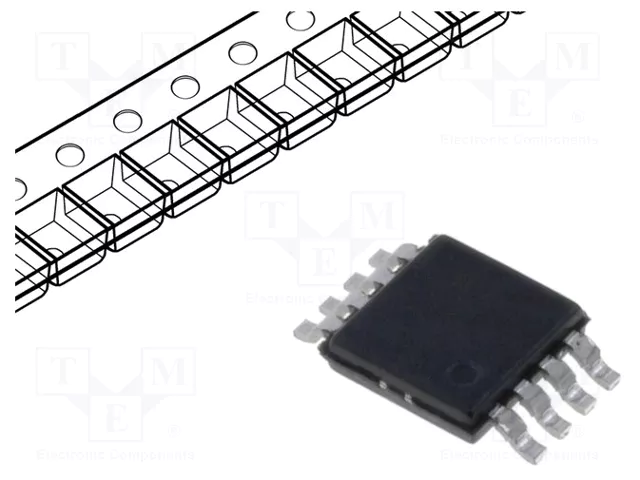

GD25Q128CSIG
128Mb serial flash memory.
Product Description
The GD25Q128C (128M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the
Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#/ RESET#).
The Dual I/O data is transferred with speed of 208Mbits/s and the Quad I/O & Quad output data is transferred with speed
of 320Mbits/s
Key Features
◆ 128M-bit Serial Flash
◆ Program/Erase Speed
-16384K-byte -Page Program time: 0.6ms typical
-256 bytes per programmable page -Sector Erase time: 50ms typical
-Block Erase time: 0.2/0.3s typical
◆ Standard, Dual, Quad SPI -Chip Erase time: 60s typical
-Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#/ RESET#
-Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#/ RESET#
◆ Flexible Architecture
-Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 -Sector of 4K-byte
-QPI: SCLK, CS#, IO0, IO1, IO2, IO3 -Block of 32/64k-byte
