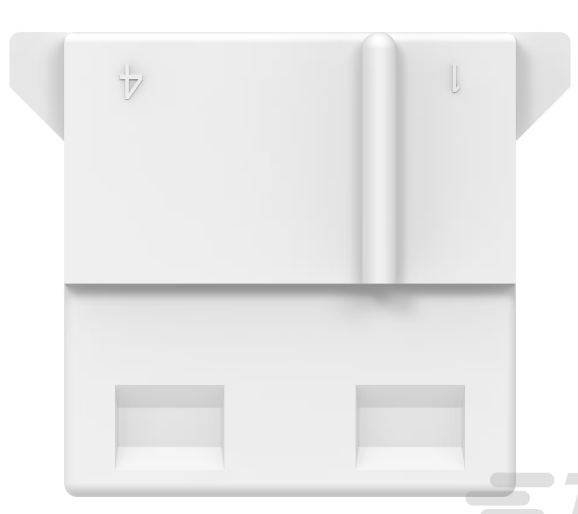

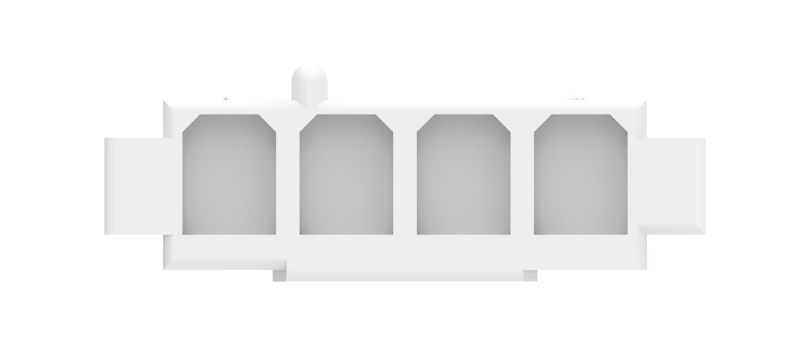

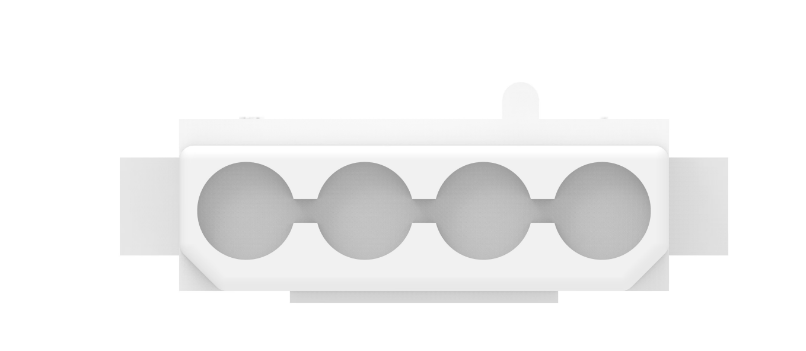

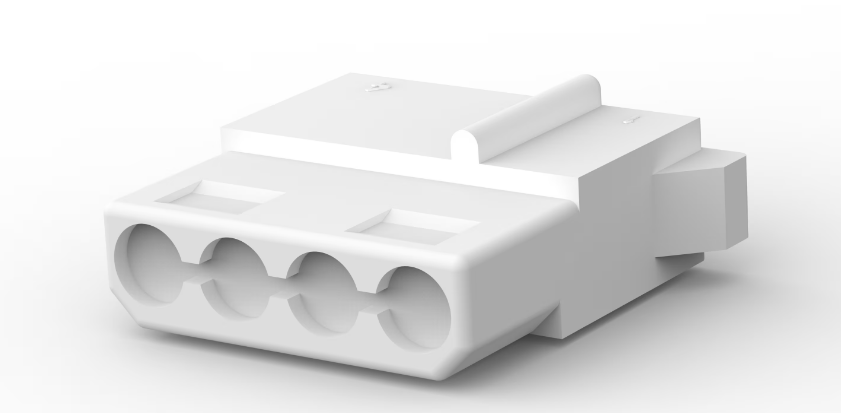

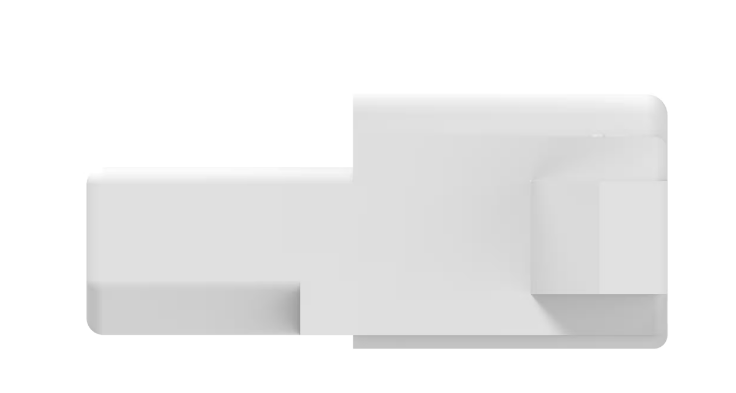

1-480424-0 (Universal MATE-N-LOK)

Product Type Features
Connector Product Type :Housing
Connector & Housing Type :Plug
Connector System :Wire-to-Wire
Sealable :No
Connector & Contact Terminates To :Wire & Cable
Configuration Features
Number of Positions :4
Number of Rows :1
Electrical Characteristics
Operating Voltage (VAC):250
Body Features
Primary Product Color :Natural
Contact Features
Contact Layout :Inline
Contact Retention Within Housing :Without
Contact Type :Socket
Termination Features
Termination Method to Wire & Cable :Crimp
Mechanical Attachment
Panel Mount Feature :Without
Connector Mounting Type :Cable Mount (Free-Hanging)
Housing Features
Centerline (Pitch) :5.08 mm [ .2 in ]
Housing Material :Nylon
Usage Conditions
Operating Temperature Range :-55 – 105 °C [ -67 – 221 °F ]
Operation/Application
Circuit Application :Power & Signal
Identification Marking
Circuit Identification Feature :With
Industry Standards
CSA Rating :LR 16455
Compatible With Approved Standards Products :UL E28476
UL Rating :Certified | Recognized
Compatible With Agency/Standards Products :CSA | UL
UL Flammability Rating :UL 94V-2
Glow Wire Rating :Standard Part – Not Glow Wire
Packaging Features
Packaging Quantity :4000
Packaging Method :Package
